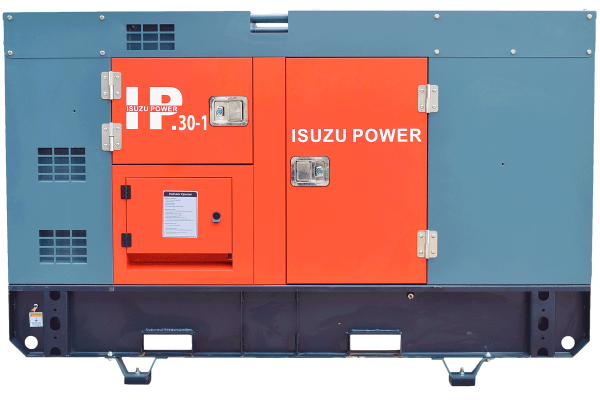

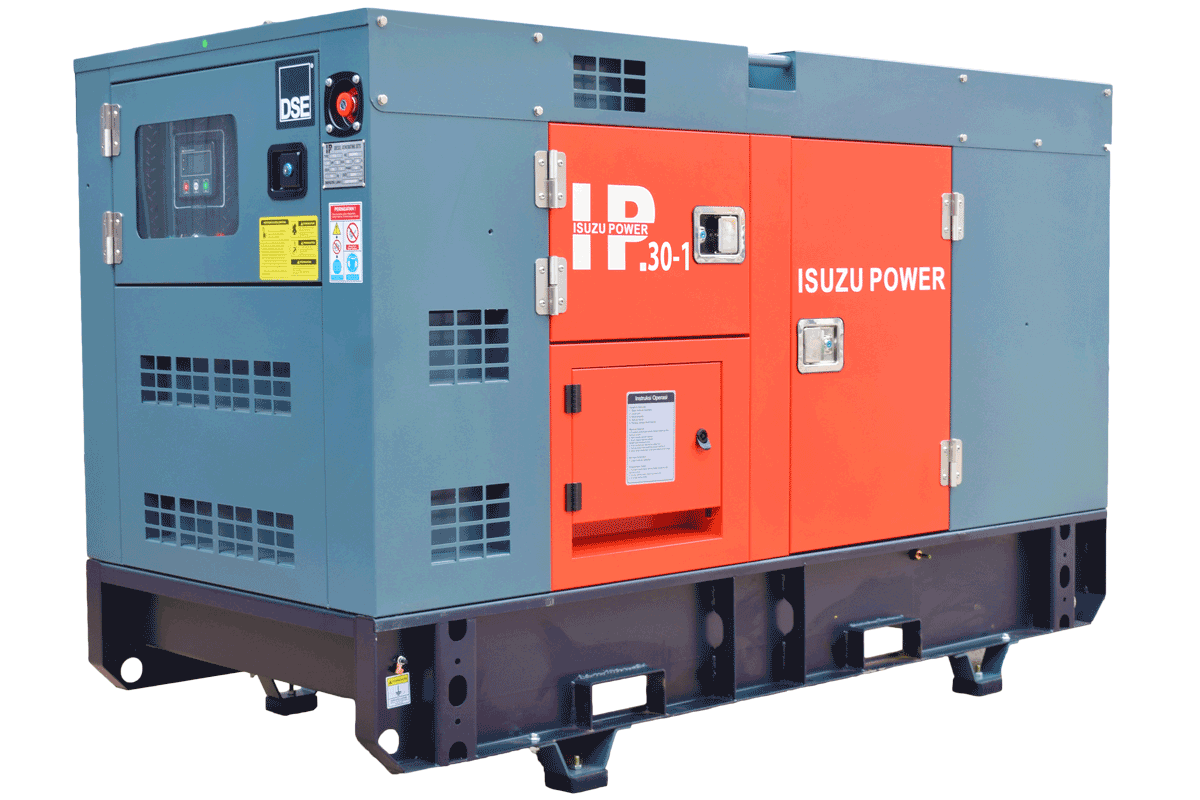

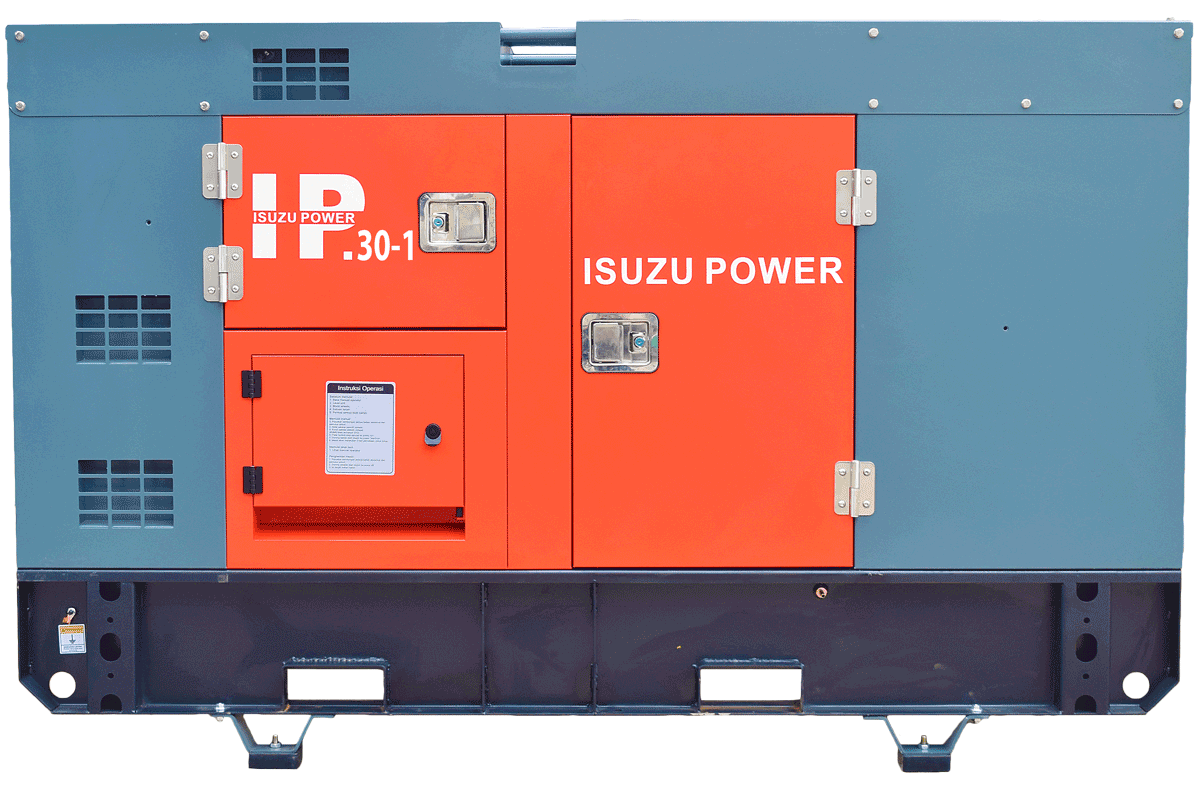

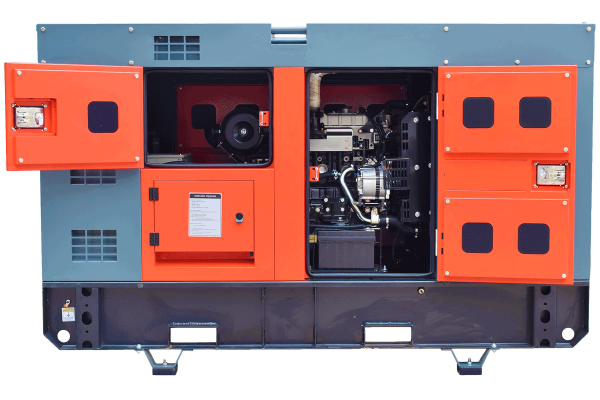

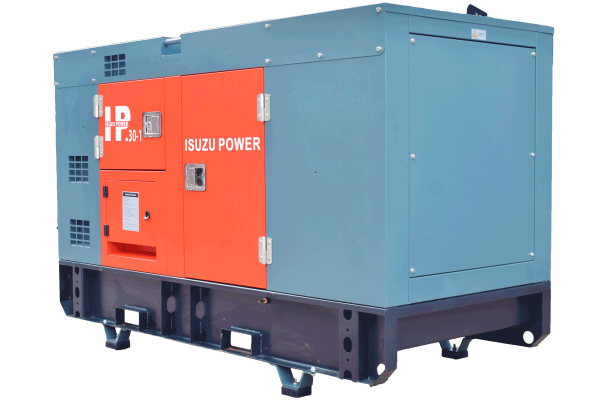

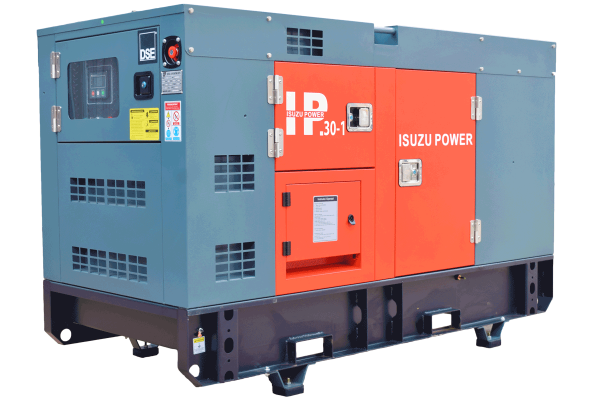

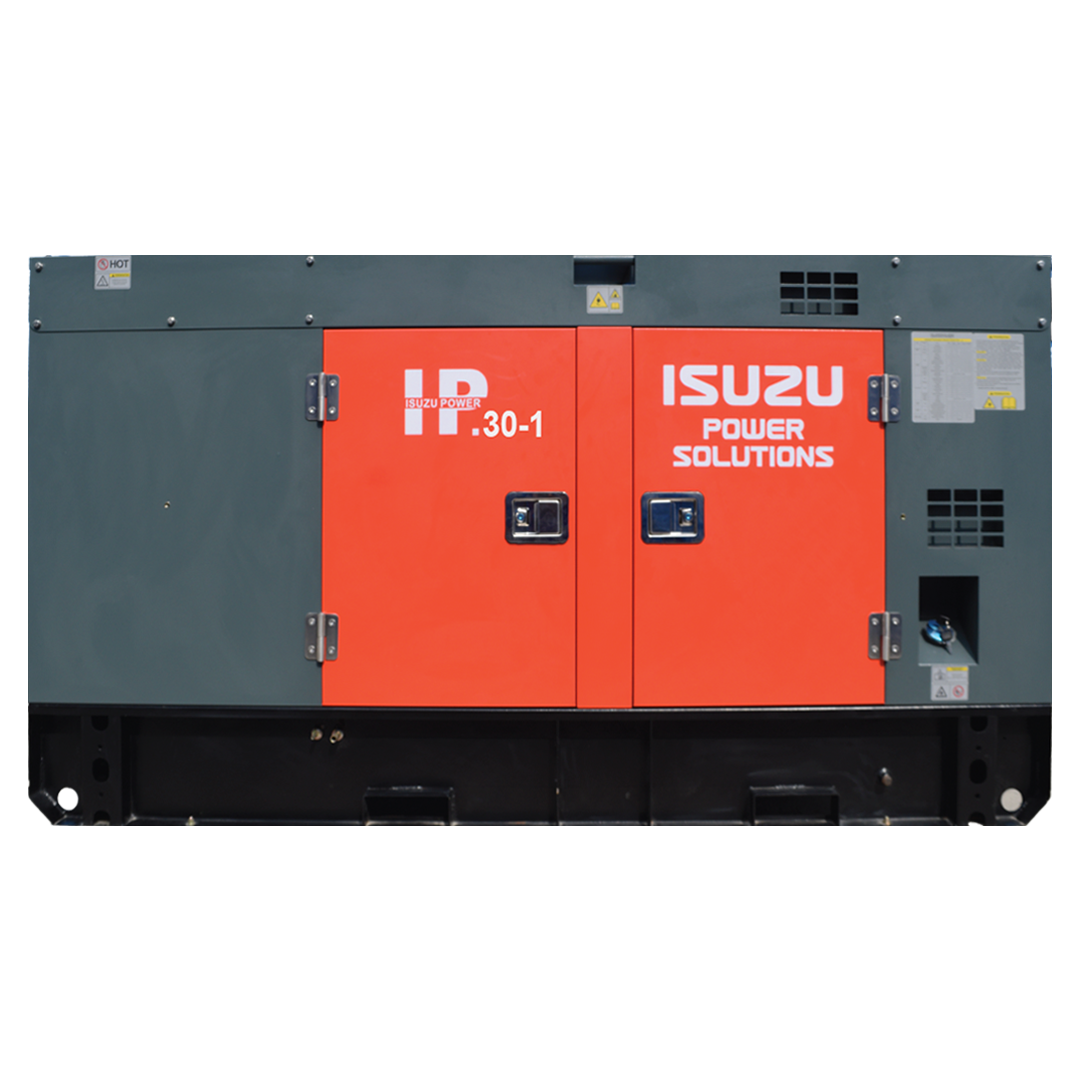

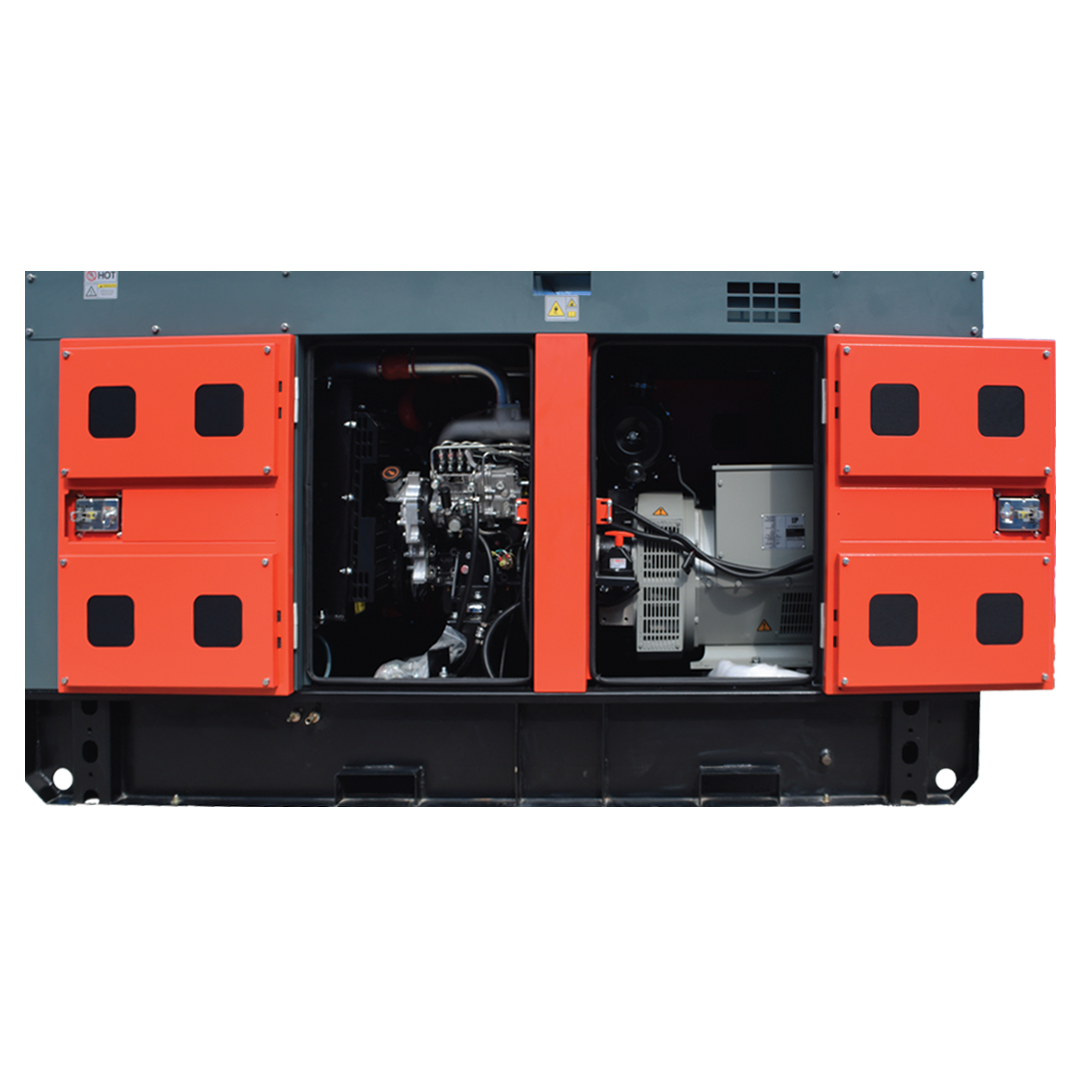

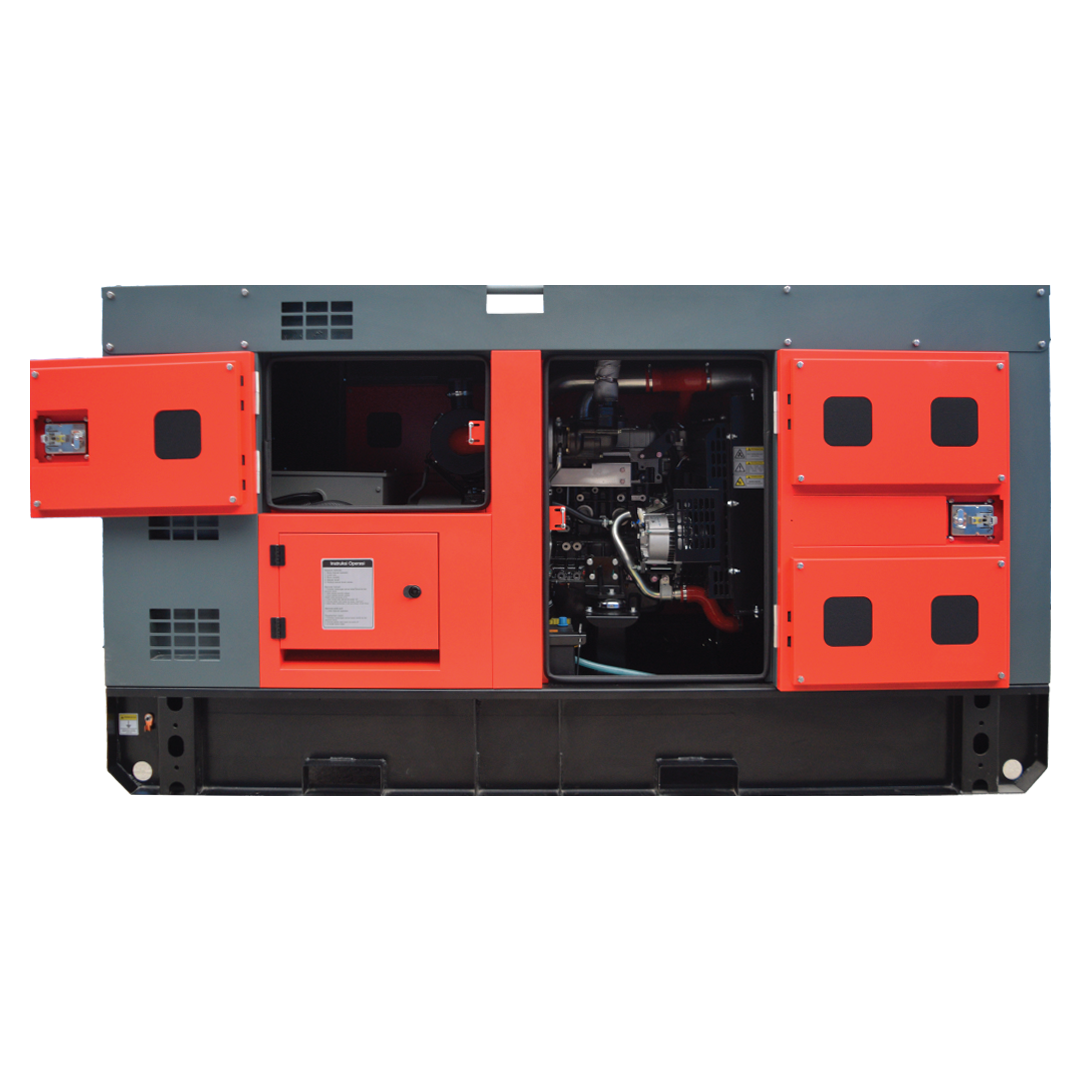

ISUZU POWER GENSET IP 30-1
Spec Sheet
| Data Sheet | |
|---|---|
| Diesel generator sets type | IP30-1 |
| Rated output (KW) | 30 |
| Rated output (KVA) | 30 |
| Standby output(KW) | 33 |
| Standby output(KVA) | 33 |

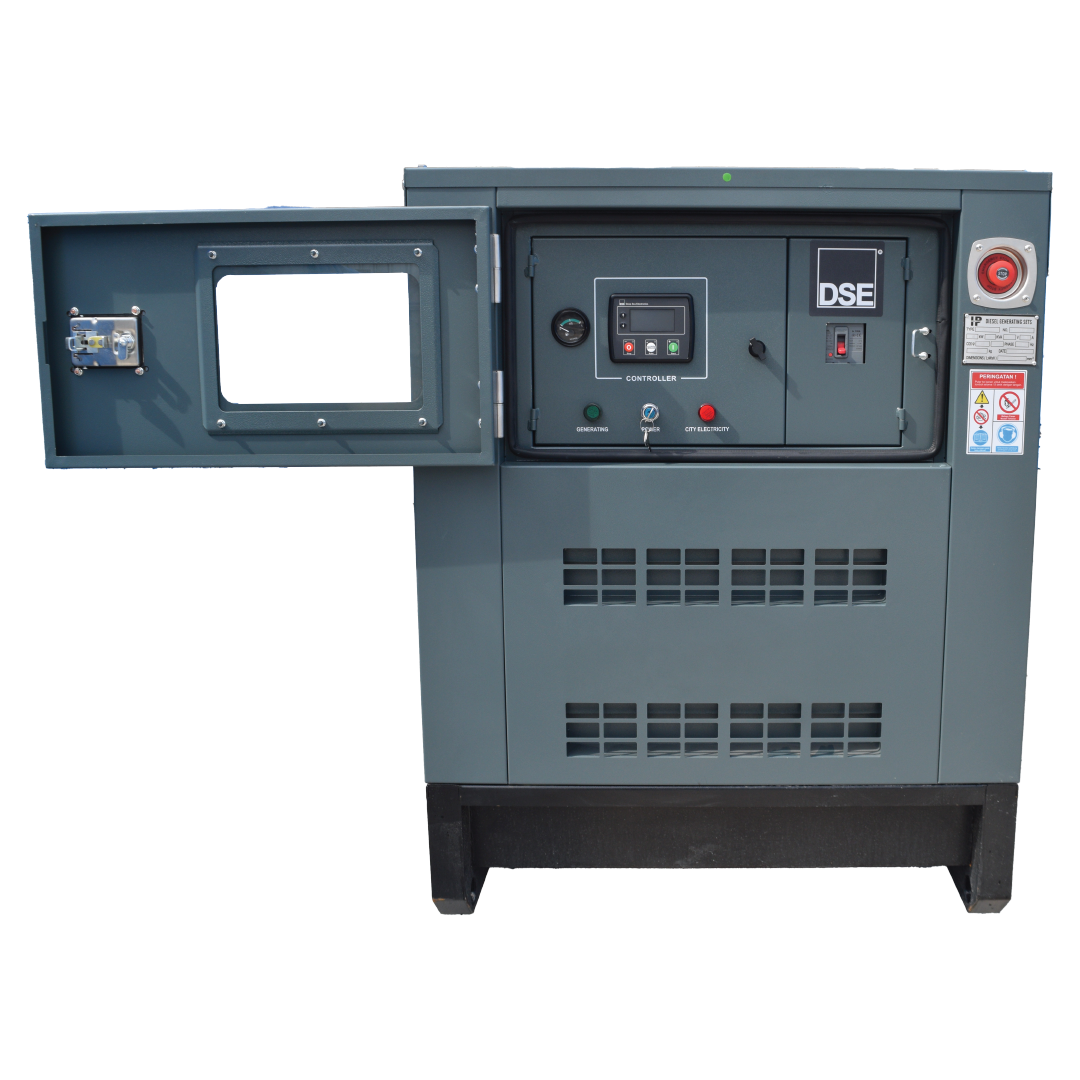

| Controller Brand | DeepSea |
| Controller | DSE4620 |
| Battery type | Maintain Free |
| Battery charge | With |

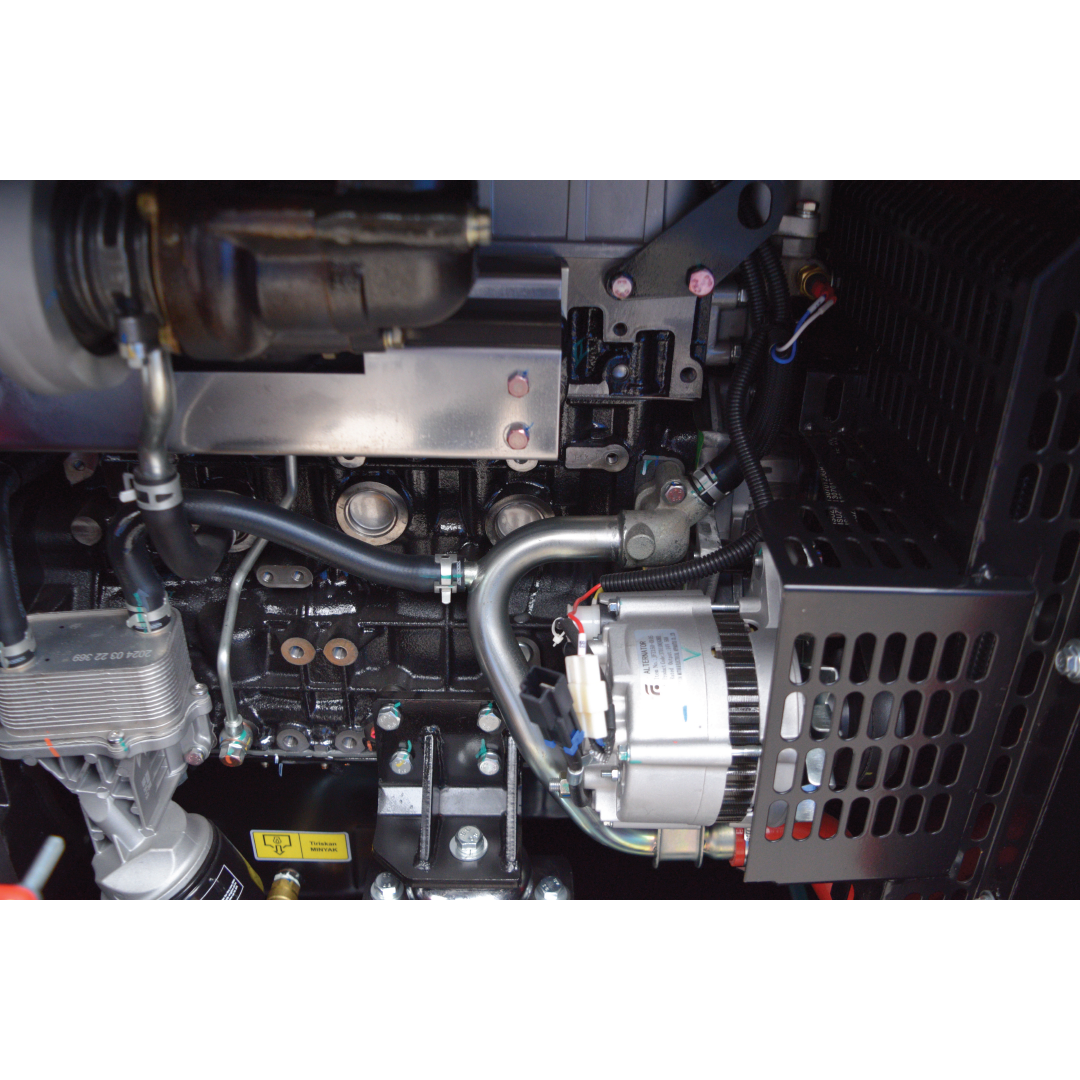

| Engine brand | ISUZU |
| Engine model | JE493ZLDBE-02 |
| Type | In line, 4 Cylinder 4 Stroke |
| Air intake type | Naturally |
| Cooling mode | Water cooling |
| Governor mode | Electronic |
| Bore*Stroke(mm) | 93*102 |
| Compression ratio | 18.2:1 |
| Rated Speed (rpm) | 1500 |
| Displacement(L) | 2,771 |
| Rated power (without fan)(KW) | 38 |
| Standby power (without fan )(KW) | 42 |
| Fuel consumption(g/KWh) | 210 |
| Fuel consumption(L/h) | 7,6 |
| Fuel capacity including filter(L) | 60,7 |
| Steady state speed regulation（%） | 5% |
| Emission compliant | Stage II |
| Alternator Model | ISUZU POWER |
| Rated output (KW) | 34KW |
| Voltage/Frequency/Factor | 230V, 3 Phase, 50 HZ, cosΦ0.8 |
| Insulating grade | H |
| Protection grade | IP23 |
| Packing Size (mm) | 2280*1000*1280 |
| Weight (KGS) | 990 |
